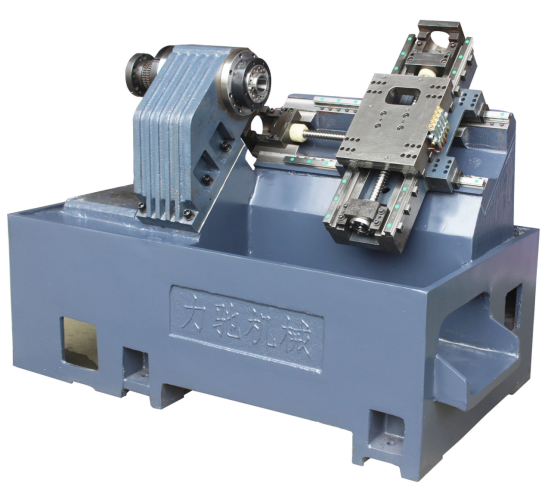

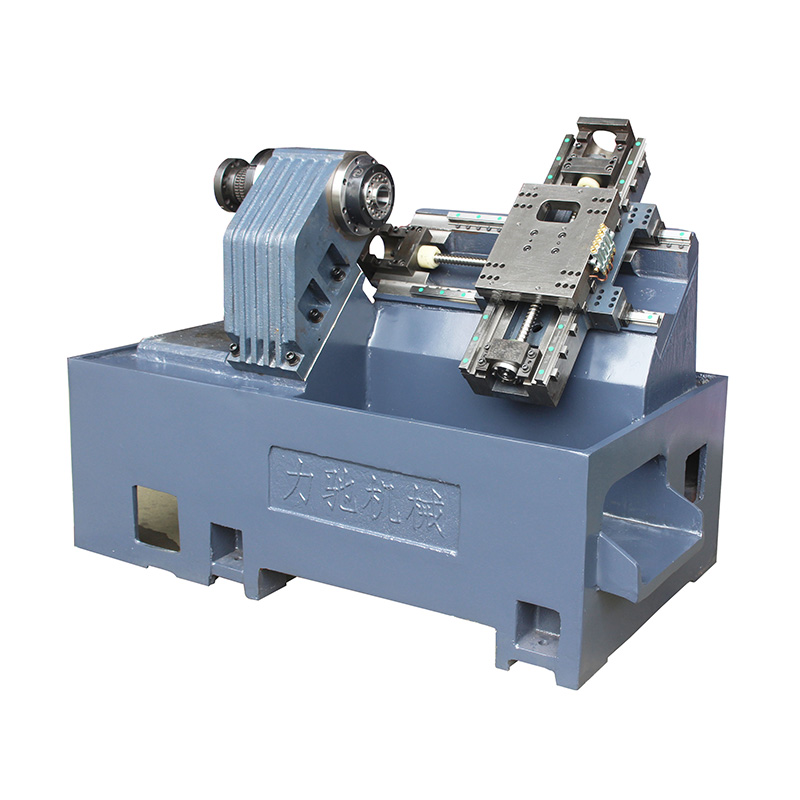

45° one-piece inclined bed casting base, smooth chip removal, full protective belt reinforcement plate inside the machine tool, more durable, and enhanced waterproof performance.
The integral high-strength cast iron bed HT300 is cast by resin sand by a professional foundry manufacturer. It adopts a 45-degree inclined bed structure, which has sufficient rigidity, good vibration absorption and thermal stability, and adopts wide-span Taiwan linear guide rails or German linear guide rails. , the machine tool bears a large load, has good dynamic response,
eliminates low-speed crawling, and has good precision retention。
This machine tool has high rigidity, precise positioning, high speed and high efficiency. It can be equipped with servo turret, indexing chuck, small electric spindle, automatic loading and unloading structure and other configurations to achieve multi-function and high cost performance.
The X-axis and Z-axis both adopt Taiwan roller/ball type 25 linear guides and 2510 high-precision screw rods to enhance the rigidity of the machine tool and improve the accuracy of the machine tool. With automatic forced lubrication, the high-speed movement of the machine tool is realized and the positioning accuracy of the machine tool is ensured.
![2]PG5}@{O)@9[JMP[O%Y6AN.png](/uploads/ueditor/image/1750384120410367.png "1750384120410367.png")
Good performance and strong stability
modular design
Provide different types of configuration
Good performance and strong stability
Modular design
Provide different types of configurations
Smooth chip removal
Full protective belt reinforcement plate
Enhanced waterproof performance
Smooth chip removal
Full protective belt reinforcement plate
Enhanced waterproof performance
integrate various forms of loading and unloading
automated production
small footprint
Precision sleeve spindle, driven by servo motor.
one-piece casting horiaontal bed
Enlarged observation window
